Top-Down-Center (TDC) Bracket Integration Kit for: Ares Amoeba M4 Hop-up chamber
Product Description

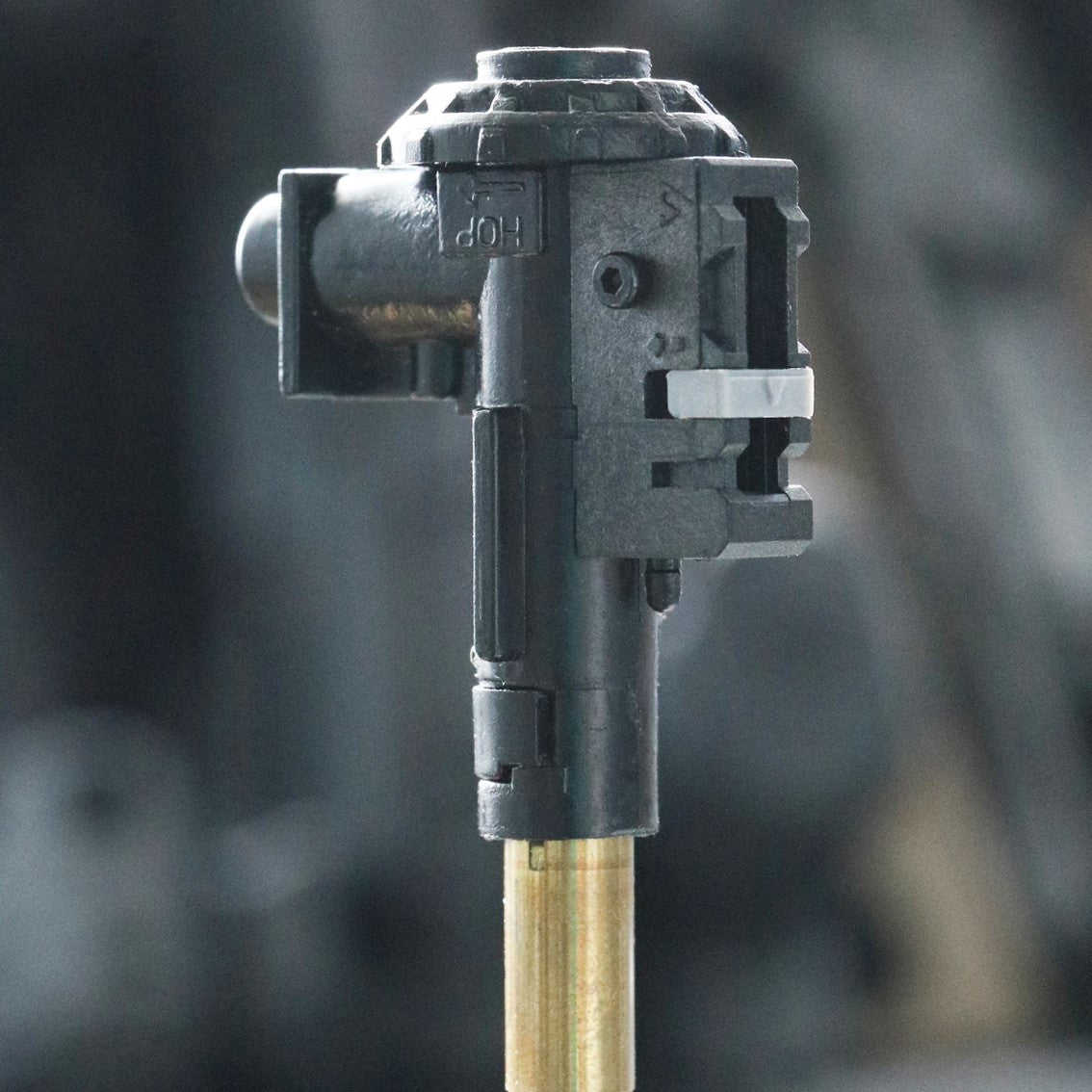

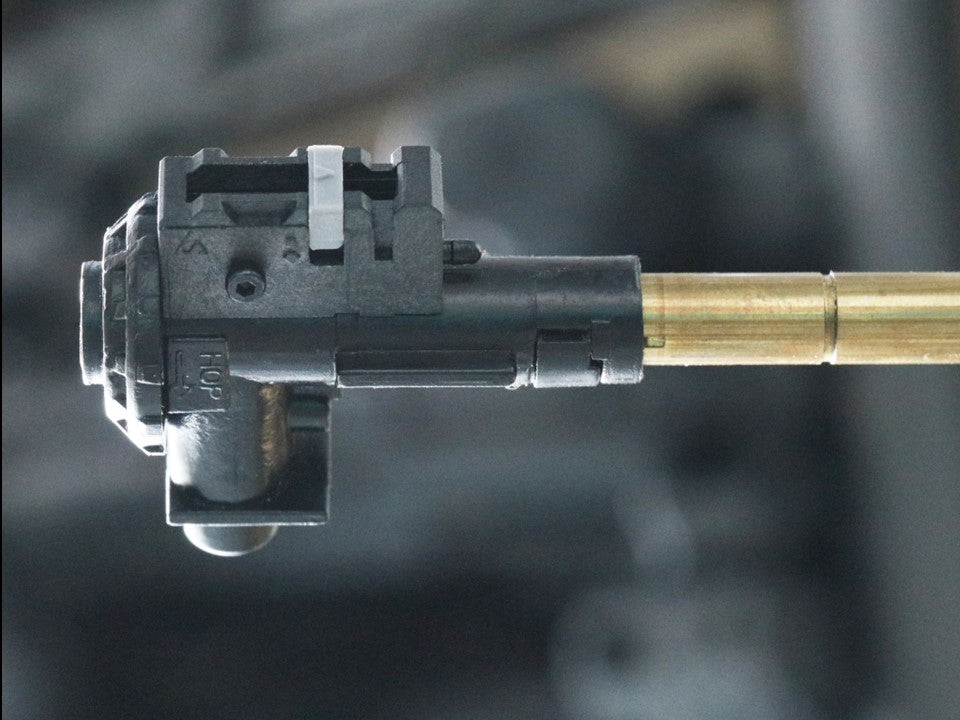

The TDC (Top-Down-Centre) Trolley Converter is designed for the Ares Amoeba Plastic Rotary Hop-up Chamber to radically upgrade the applicable hop-up inside the chamber.
Full step-by-step installation can be downloaded using this link CLICK HERE TO DOWNLOAD
FAQ Frequently Asked Questions
1. Is the Integration kit difficult to install?
It is fairly simple, We recommend that you have some experience with the hop up units and inner barrel setups. Do download the instruction/ Installation manual and read all before beginning the modification process. Consult a gun tech for help if needed or contact us for any help.
2. Do I need an R-HOP patch?
Nope, this works for all types of hop setups, but we do highly recommend R-HOP buckings as minimum like the Maple Leaf Macaron buckings to take advantage of the R-hop performance for long distance shooting with deadly accuracy.
There are many brands of R-hop in the market, much like Psionic, and Silent Sniper that is easily available in the market as a drop-in patch.
3. Should I upgrade my inner barrel?
It's not necessary as stock barrels are pretty good quality these days and
could still function well with the R-HOP builds.
4. How do you remove the bracket once its installed?
It is possible, but not recommended once it is glued into place to prevent further deviations of the setup in the future. It is possible to still service your hop-up chamber and its components for cleaning without removing the TDC converter bracket.
5. Can it work on another hop-up chamber?
Nope. This is designed specifically for the Ares Amoeba Plastic version.
We have other brackets for G&G, KRYTAC, Prowin, KWA ASG Scorpion Evo,
ICS, and VFC, Tokyo Marui NGRS, and Wolverine MTW.
6. What bucking would be the best?
The stock green or blue buckings ones are good, but other brands like
Prometheus and Modify brands have boundless buckings (without the bump inside)
which are required for R-HOP builds.
Drop-in R-hop buckings like Maple Leaf Macaron are highly recommended.
7. Will this work for Flat-hop?
Yes, it will, and for G-hop too. There are plenty of videos of how-to and what you need for this setup. Once you have this in place, you will notice a huge
difference in performance and accuracy.
8. How far can R-HOP travel?
For a 1J setup and the right settings, 60-70m using 0.28g BB
Please refer to the instruction manual for more information. If you need any further tech help, contact us on info@airtechstudios.com
Types of Hop the Conversion Kit can be Used for
The kit may be used in unison with all bucking types and also works perfectly for R-Hop & Flat-hop setups utilizing a trolley system that applies hop perfectly downwards for the most consistent pressure distributed onto the BB. As a result, increased accuracy over longer distances.
Why TDC (Top-Down-Center)?
The idea of using a Top-down-center is a well sought after functionality in airsoft that maximizes the amount of friction allowed onto a BB round and there are third part chambers that can achieve this. However, switching to a third party chamber could carry a series of risks such as double BB feeding, misfeeding, and inconsistent air compression. That is the reason why we opted for an upgrade option for the original hop-up chamber that is specifically designed for Ares Amoeba models.
M-Nub
We tested the performance of many types of M-nubs for its firmness, durability, and ability maintain its shape under intense pressure. We settled with a version that ticks all of these boxes.
2x M-nubs are included that covers the length of the hop-up window to maximize the amount of exposure onto the bucking and then BB. This ensures the most stable hop, while the BB accelerates through the hop mound/ Arch.
Outer Barrel Modifications
Please note that this kit will require modification to the outer barrel of your airsoft replica, however, is straightforward and worth your while after!
The Integration kit is made for the Ares Amoeba Plastic hop up unit. Slight modification/ Sanding is required
Core Benefits After Install
- Increase shooting distance, accuracy and consistency.
- Micro adjustments for the perfect hop setting.
- Using original chamber will ensure optimum BB feeding, FPS consistency, and prevent double feeding.
- Can be used on all hop styes including a standard bucking, R-HOP, Flat-hop, and Advanced R-Hop buckings i.e. Maple Leaf Macaron.
Package Contents
1 x TDC Bracket
1 x TDC Trolley
2 x M-Nub
1 x Hop Up Arm
1 x M2 Bolt
1 x M2 Nut
